Facet Analyser: ParaView plugin for automated facet detection and measurement of interplanar angles of tomographic objects
| Please use this identifier to cite or link to this publication: http://hdl.handle.net/10380/3510 |
Published in The MIDAS Journal - Computational Algorithms.
Submitted by Roman Grothausmann on 02-05-2015.

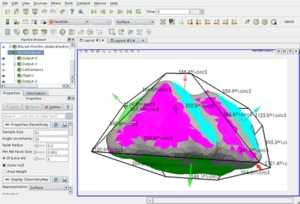

The presented ParaView plugin allows easy access to the algorithm described in Ref 1. It enables analysis of faceted objects that exhibit distortions in their digital representation, e.g. due to tomographic reconstruction artifacts.
The contributed functionality can also be used outside ParaView in e.g. command-line programs. The code, data, a test and an example program are included.
The contributed functionality can also be used outside ParaView in e.g. command-line programs. The code, data, a test and an example program are included.
Data
3 Datasets (841Kb)
8faced-rhombic-dodecahedron_twinned_simplified.vtp (2Kb)
8faced-rhombic-dodecahedron_twinned_010_deformed_wss.stl (212Kb)
rhombic-dodecahedron_040.vtp (626Kb)
8faced-rhombic-dodecahedron_twinned_010_deformed_wss.stl (212Kb)
rhombic-dodecahedron_040.vtp (626Kb)
Code
Reviews
Quick Comments
Resources
 |
|
| Download All | |
| Download Paper , View Paper | |
| Download Source code | |
| Source code repository | |
Statistics more
|
|
| Global rating: |
|
| Review rating: | [review]
|
| Code rating: | |
| Paper Quality: |
|
| 1 comment | |
Information more
|
|
| Categories: | Edge Detection, Error Estimation, Geometric transforms, Image, Mesh, Neighborhood filters, Probability, Surface extraction, Thresholding, Watersheds |
| Keywords: | ParaView, ITK, VTK, interplanar angles, facets, tomography |
| Toolkits: | CMake, ITK, VTK, CMake, ITK, VTK |
| Export citation: | |
Share
|
Linked Publications more
|
||
Label object representation and manipulation with ITK
by Lehmann G.
|
||
|
A MultipleImageIterator for iterating over multiple images simultaneously
by Schaerer J.
|
||
View license
Loading license...
Send a message to the author
The current source can be found at:
http://gitlab.com/romangrothausmann/FacetAnalyser.git
http://github.com/romangrothausmann/FacetAnalyser.git
Docker images with the CLI and ParaView with the Plugin at:
http://gitlab.com/romangrothausmann/FacetAnalyser/container_registry
master branch for a local X without Nvidia graphics or vgl branch for Nvidia graphics (even without VGL):
git clone -b master http://gitlab.com/romangrothausmann/FacetAnalyser.git
cd FacetAnalyser/demo/
docker pull registry.gitlab.com/romangrothausmann/facetanalyser/master
CLI:
docker run -ti -v $(pwd):/tmp/fa --workdir=/tmp/fa/
registry.gitlab.com/romangrothausmann/facetanalyser/master
FacetAnalyserCLI
8faced-rhombic-dodecahedron_twinned_010_deformed_wss.vtp
51 15 0.2 0.001 2
8faced-rhombic-dodecahedron_twinned_010_deformed_wss_FA.vtp
PV:
../run.sh -dr --state=8faced-rhombic-dodecahedron_twinned_simp+def.pvsm
